Cold Water High Pressure Cleaners

GARAGE 1211 LP

4-pole electric motor (1450 RPM) with thermal protection. Linear pump with brass head to three steel. Pistons ceramics and by-pass valve incorporated. Suction and discharge valves in stainless steel. Detergent suction probe with indirect < br external aspiration>. Pressure gauge in glycerine bath wall-mounted. Hose reel. Kit (optional 6.608.0022 code) Kit for wall mounting (optional code 6.608.0058). Kit with wheels and handle extension for version with cart (optional code 6.608.0056).

Technical Data

• Operating pressure / max 120/150 bar

• Delivery rate 660 l/h

• Absorbed power 3000 W

• Voltage 230 V-50 Hz

• RPM 1450 RPM

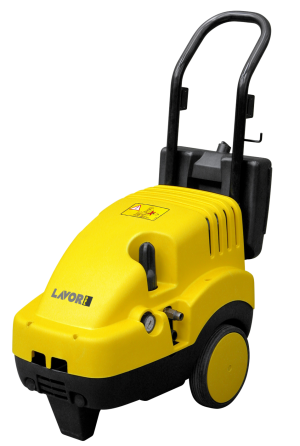

DANUBIO 1211 LP

4 poles electrical motor (1450 RPM) with thermal protection and air cooling. Three ceramic coated pistons, brass linear pump head with built-in by-pass valve. Suction and delivery valves s/s. Built-in Detergent tank for indirect suction. Pressure regulator. Pressure gauge Glicerine. Hose-reel (optional). Accessory holder. Power cable holder. Ergonomic handle.

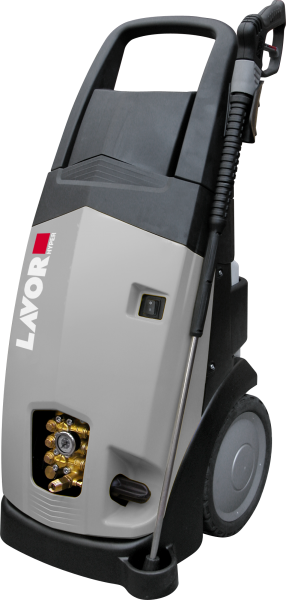

MICHIGAN 1211 LP

• 4 poles electrical motor (1450 RPM) with thermal protection and water cooling (three phase models)

• Three ceramic coated pistons (1 ph), full ceramic pistons (3 ph), brass linear pump head with built-in by-pass valve

• Low voltage and delayed Total Stop (three phase model)

• Suction and delivery S/S valves

• Detergent built-in tank for indirect suction (1,6 lt.)

• Pressure regulator

• Glicerine pressure gauge

• Hose reel (optional)

• Accessory holder

• Power cable holder

• Ergonomic handle

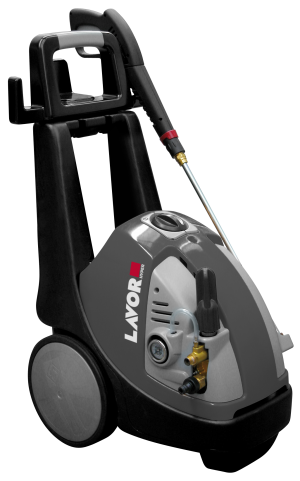

HYPER A 1311 LP

• 4 poles electrical motor (1450 RPM) with thermal protection

• Three ceramic coated pistons, brass linear pump head with built-in by-pass valve

• Suction and delivery S/S valves

• Detergent built-in tank for indirect suction

• Pressure regulator

• Glicerine pressure gauge

• Accessory holder

• Ergonomic handle

Technical Data

• Operating pressure / max 130/150 bar- 1885/2175 psi bar

• Delivery rate 660 l/h- 2.90 GPM l/h

• Absorbed power / Voltage 2900W - 230V - 50 Hz 1 ph

• Max. inlet water temperature 40 °C

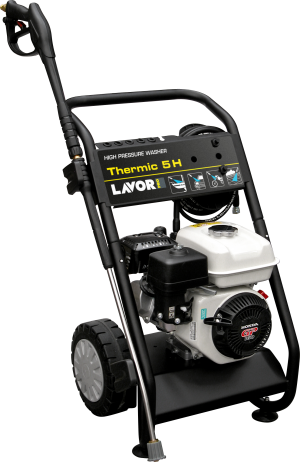

THERMIC

Three ceramic coated pistons, brass axial pump head with built-in by-pass valve. Suction and delivery valves s/s. 5 HP Honda GC 160 unleaded gasoline engine. Integrated detergent suction with external suction probe. Thermal valve. Pressure regulator. Glicerine pressure gauge. Hose-reel (optional). Suction hose with check valve (optional). Steel frame. Hose holder. Nozzles holder.

Technical Data

• Operating pressure / max 160 bar

• Delivery rate 570 l/h

• RPM 3000 RPM

• Max inlet water temperature 40 °C

• Motor type/HP HONDA GC 160/5
